Core capability
Busbar processing
Combined cutting, punching, and bending prepares copper bars for approved panel ratings and arrangements.

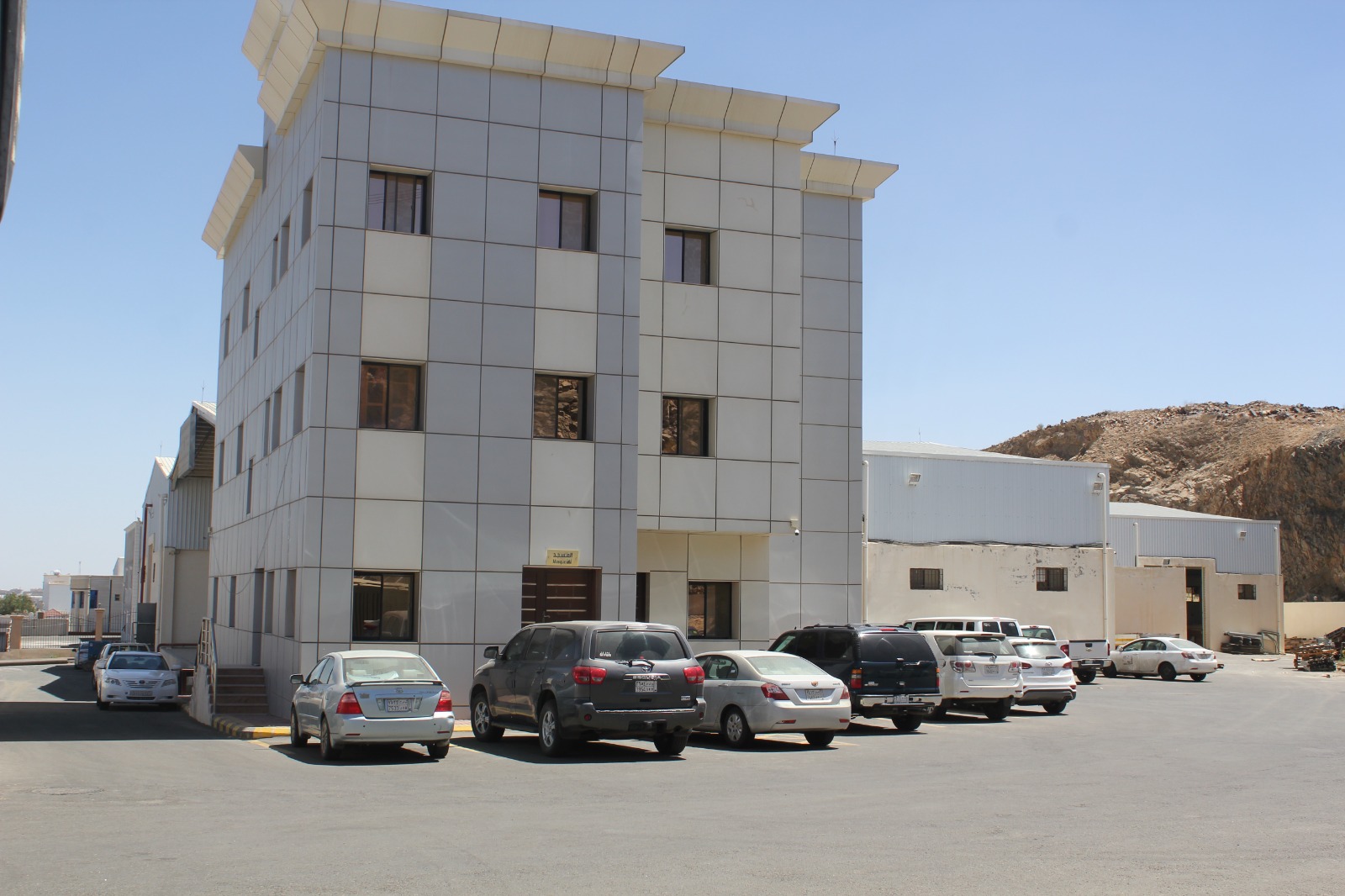

Manufacturing in Khamis Mushait, Saudi Arabia
Built Under
One Roof
From engineering review to final inspection, Al-Meftaha brings the critical stages of low-voltage panel manufacturing together through controlled in-house processes.
Since 2012Saudi manufacturing capability
In-houseEngineering through final testing
IEC & SBCStandards-led manufacturing
100%Boards tested before dispatch
Controlled production
Manufacturing depth you can see
Al-Meftaha manufactures project-specific electrical panels through coordinated engineering, enclosure fabrication, copper busbar processing, mechanical assembly, wiring, inspection, and testing.
Keeping these stages connected gives the team direct control over build quality, project ratings, component selection, panel arrangement, and final documentation.
The manufacturing journey
From approved design to delivery
Seven connected stages turn project requirements into a finished, inspected electrical assembly.
-
01
Project definition
Engineering
Ratings, calculations, technical scope, applicable standards, single-line diagrams, schematics, and approved shop drawings define the build.
- Technical review
- Project-specific ratings
- Approved production drawings
-

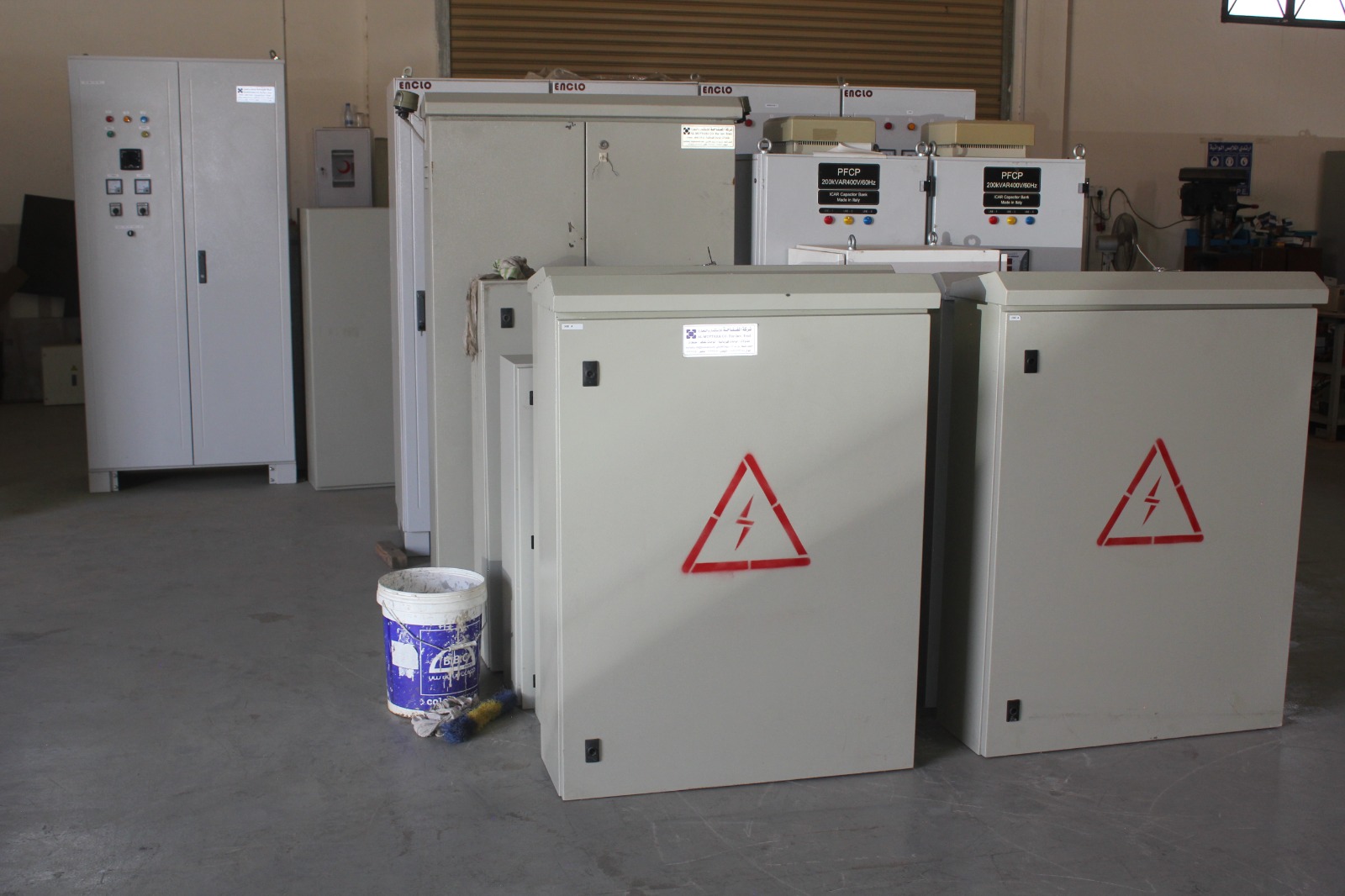

02Enclosure production
Sheet-Metal Fabrication
Enclosures and internal partitions are cut, punched, formed, welded, treated, and powder coated to the approved arrangement.
- Cutting and punching
- Forming and welding
- Polyester powder finish
-
03Copper preparation
Busbar Processing
Copper busbars are sized, cut, punched, bent, finished, and prepared to match the approved current and short-circuit requirements.
- Cutting, punching, and bending
- Project-specific sizing
- Prepared for assembly
-

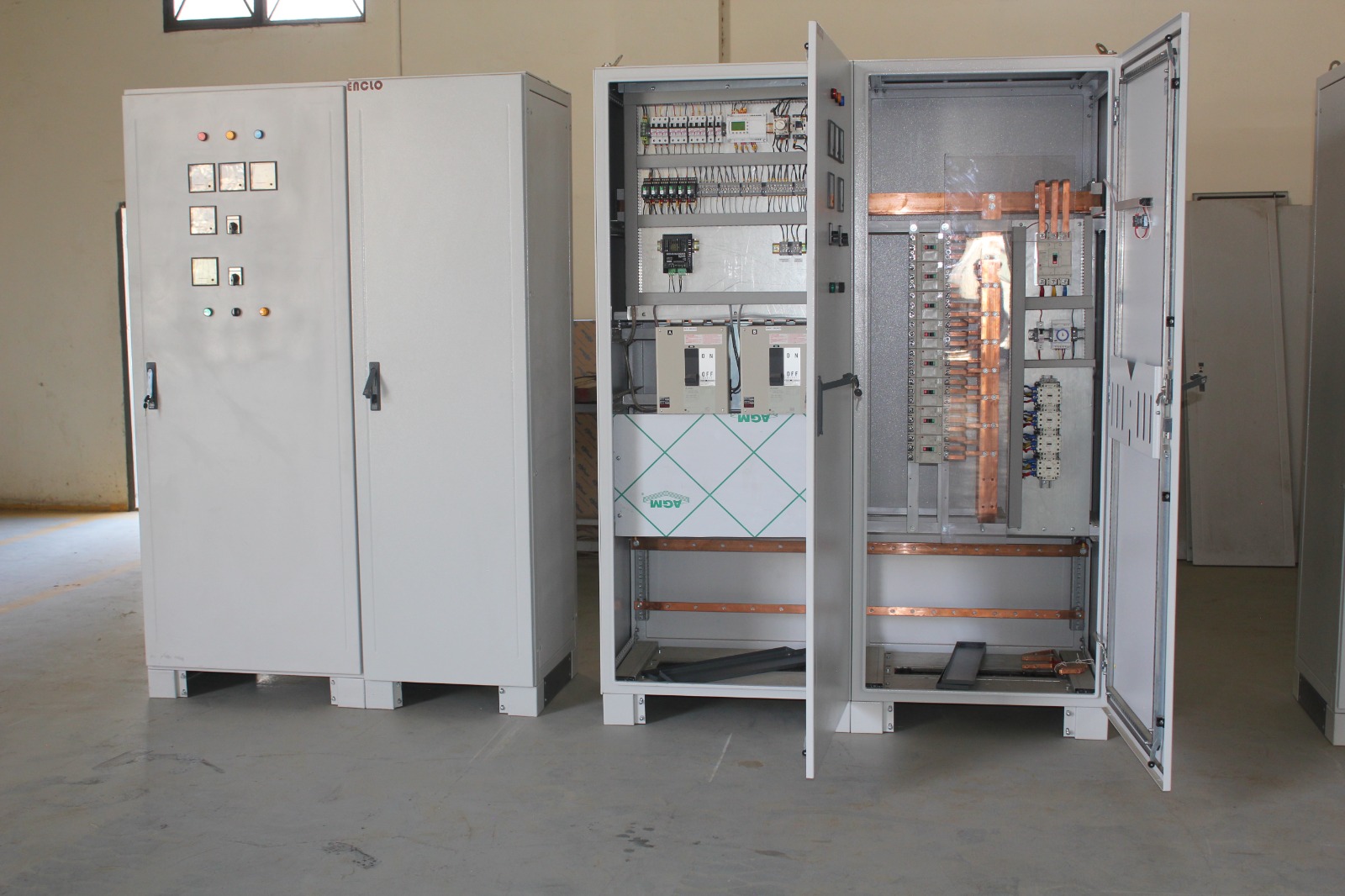

04Panel construction
Mechanical Assembly
Frames, compartments, busbars, gland plates, protective devices, controls, and accessories are installed to the approved layout.
- Compartment assembly
- Device mounting
- Busbar installation
-

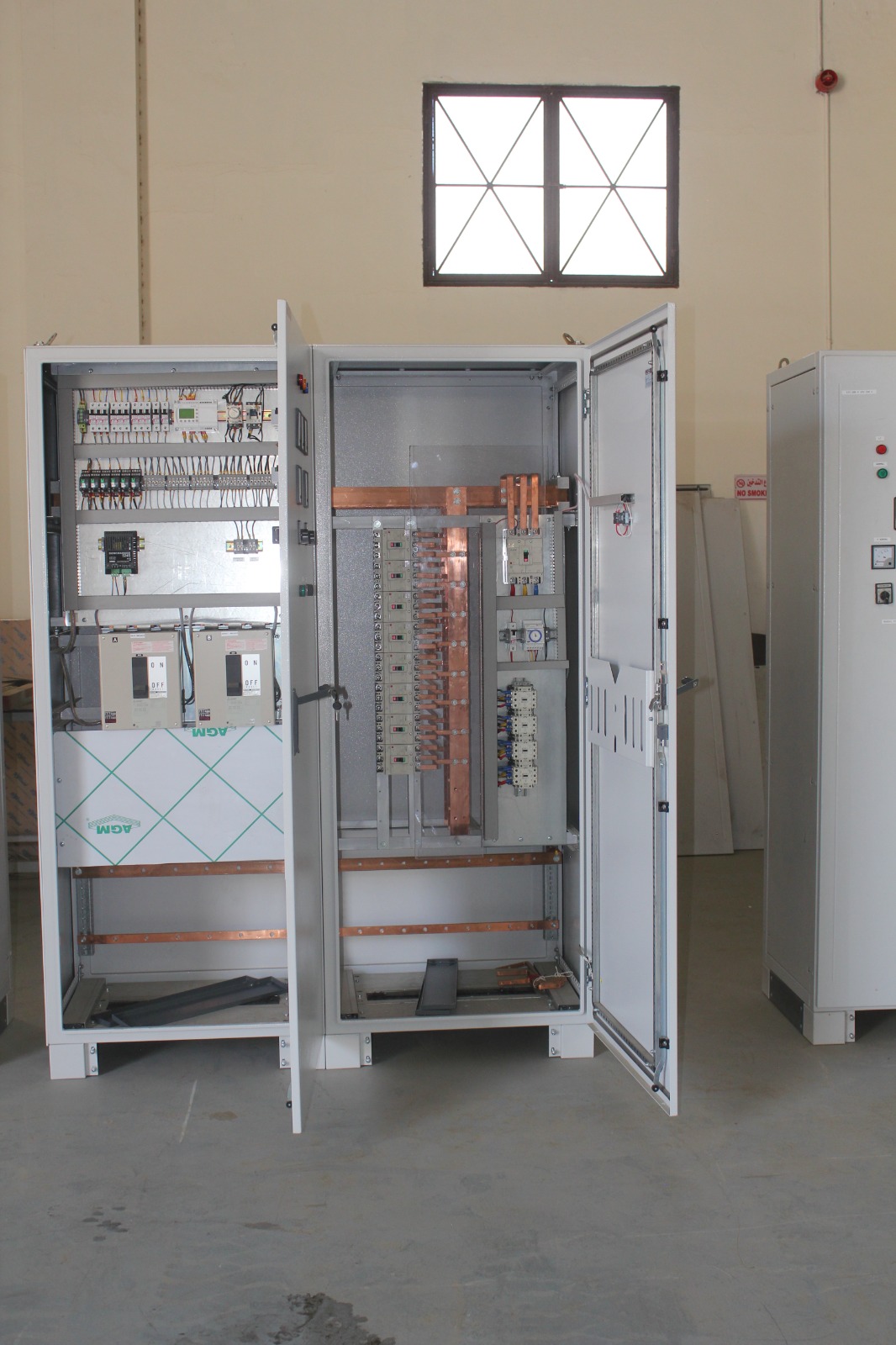

05Electrical integration
Wiring & Integration
Power and control wiring, ferruling, termination, labelling, metering, control devices, and protection functions are integrated to the wiring schedules.
- Power and control wiring
- Ferruling and labelling
- Point-to-point verification
-
06Documented verification
Testing & Inspection
Completed panels undergo visual, mechanical, electrical, continuity, insulation, functional, protection, and interlock checks as applicable to the project.
- Routine electrical tests
- Functional verification
- Factory acceptance support
-
07Final preparation
Delivery
After approval, the equipment is protected and prepared for dispatch together with the documentation required by the project scope.
- Final quality release
- Protection and packing
- Project documentation
Equipment & capabilities
Production resources behind every build
The facility supports enclosure production, copper preparation, integration, and electrical verification within one coordinated manufacturing workflow.
Sheet-metal line
Shearing, punching, and forming for enclosure panels and internal partitions.
Welding & drilling
Frame fabrication, bracketry, and mounting preparation for project-specific builds.
Powder coating
Electrostatic application and curing of polyester powder finishes.
High-voltage test set
Dielectric withstand testing of completed electrical assemblies.
Insulation & continuity testers
Electrical integrity and point-to-point verification against approved schedules.
Tested before dispatchInspection and verification are part of the manufacturing process—not an afterthought.

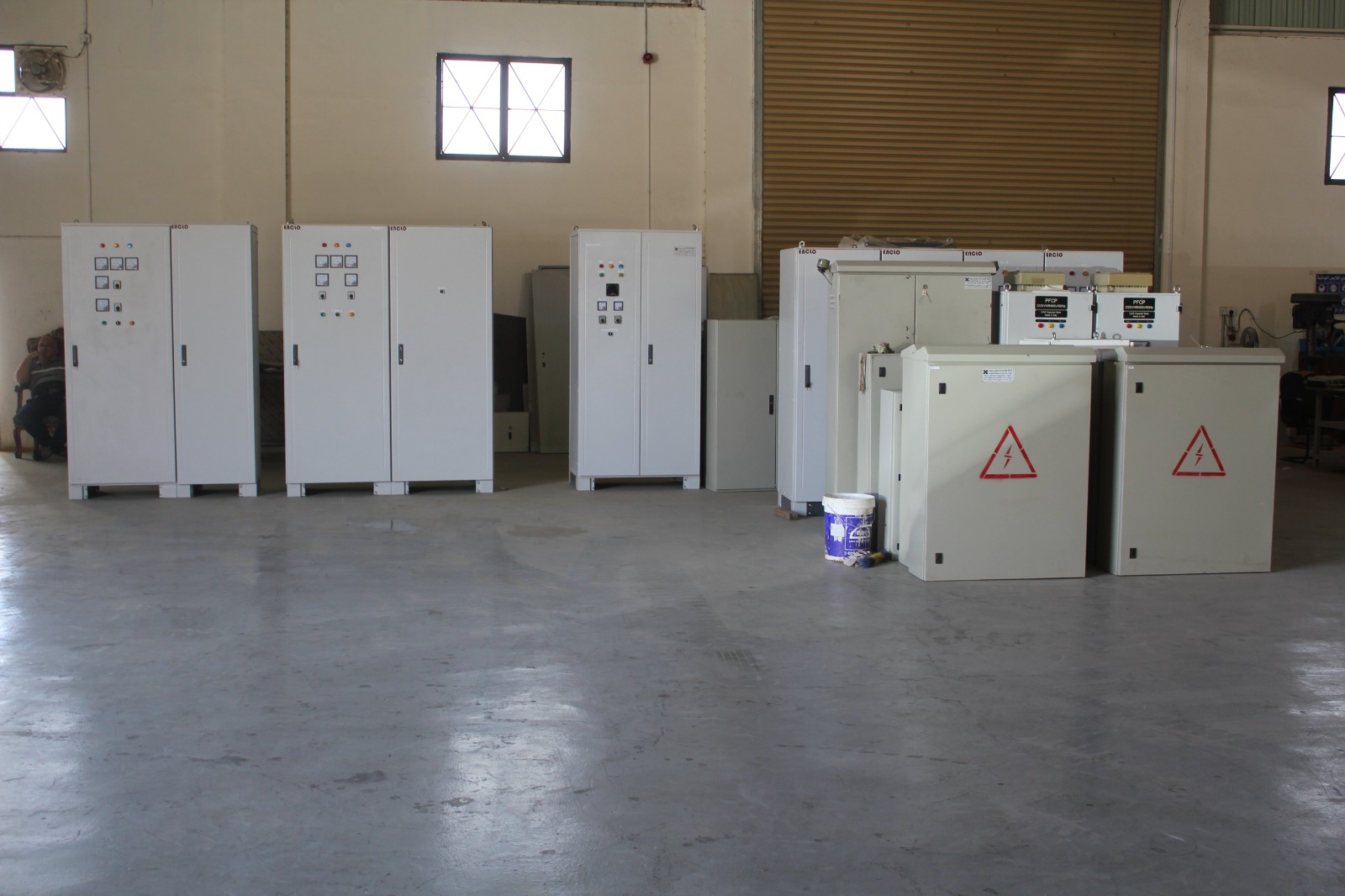

Quality & testing
Verified against the approved project requirements
Each completed assembly is checked against its approved drawings, construction requirements, wiring information, and project test plan before release.
Visual & mechanical inspectionWiring & continuity checksInsulation resistanceFunctional verificationProtection & interlock checksRecorded test documentation
Explore our complete Testing & FAT process

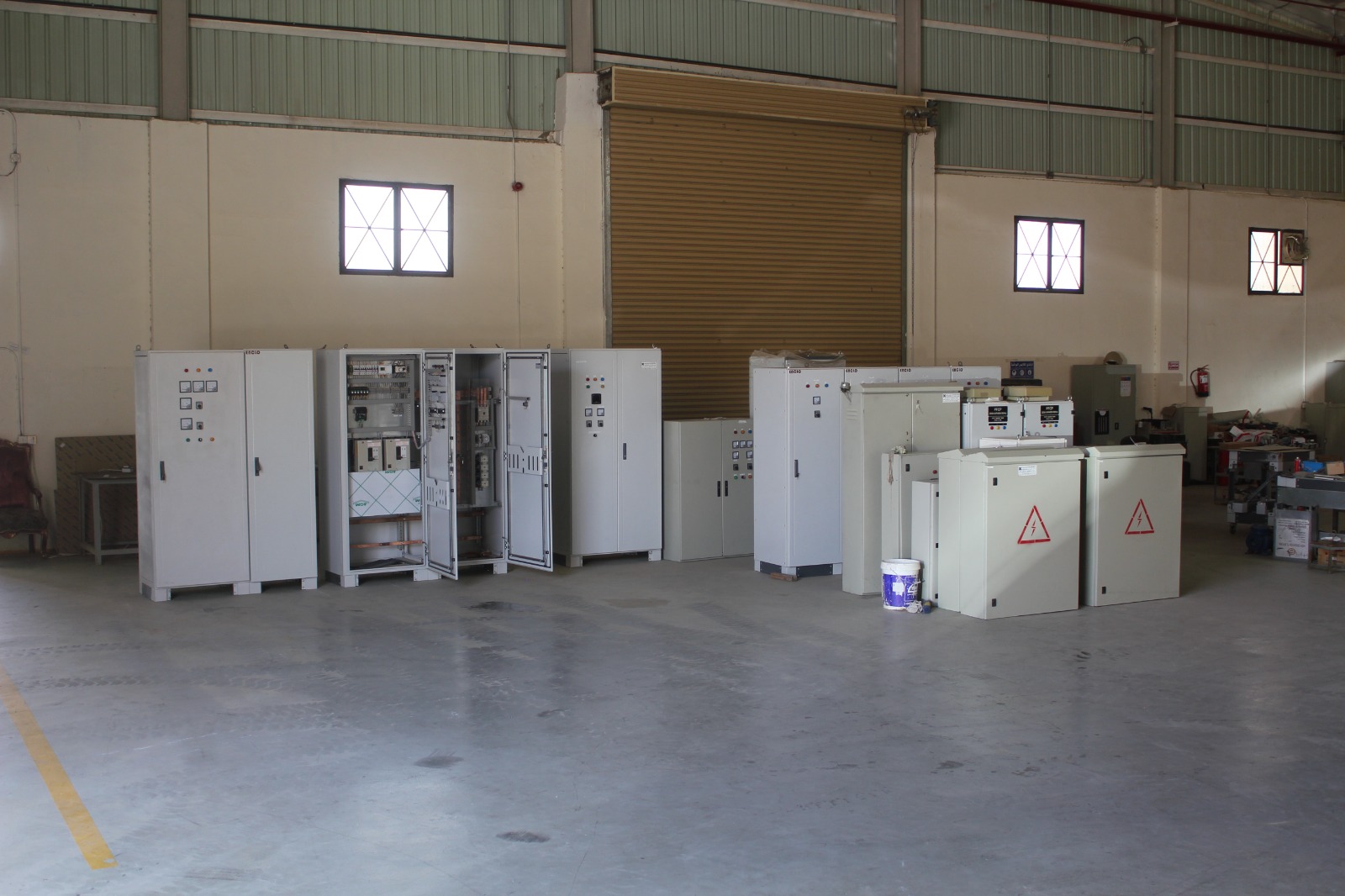

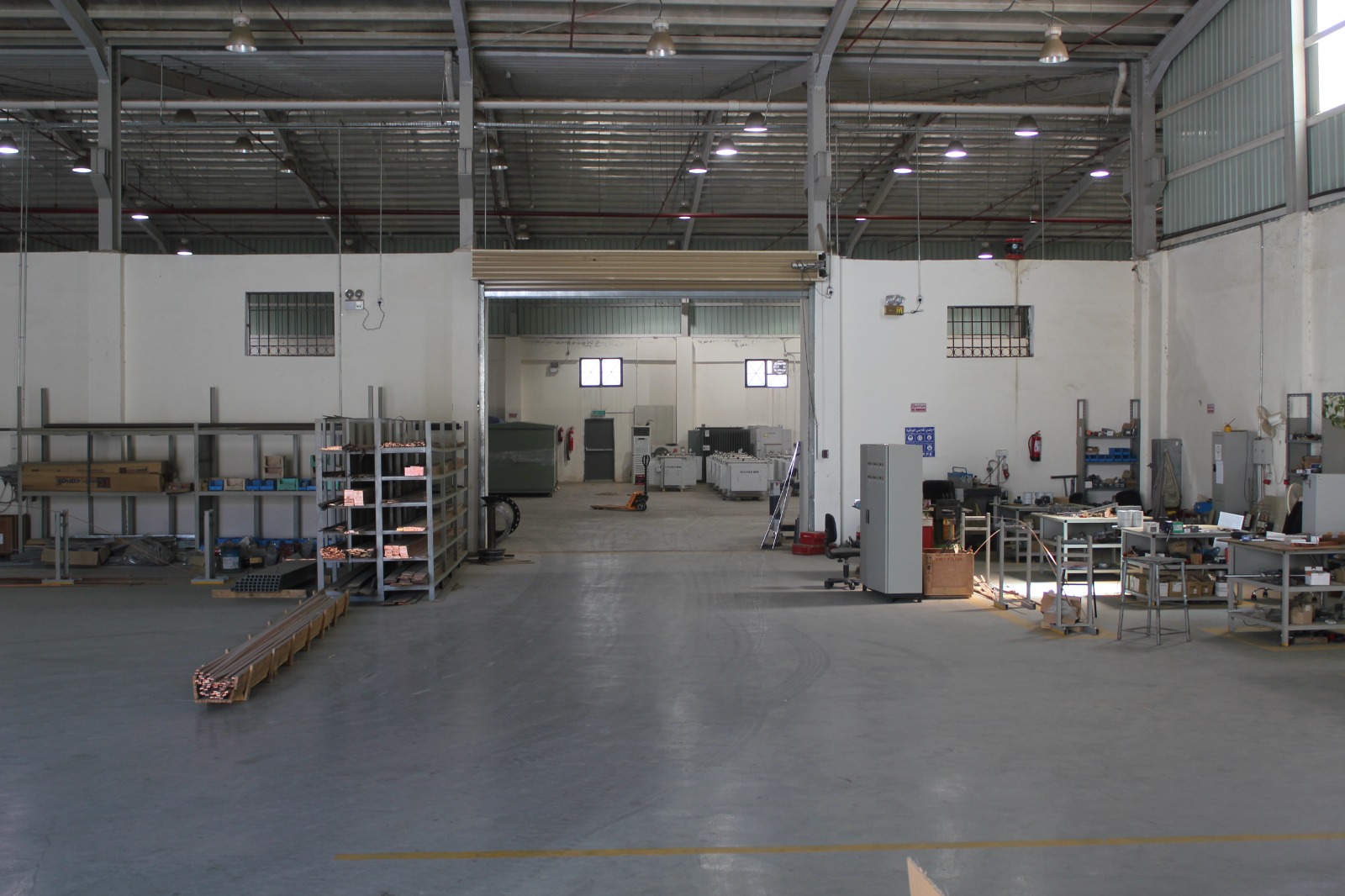

Inside the facility
Real production. Real assemblies.
Plan your next panel build
Bring your project requirements to the factory.
Upload an SLD, BOQ, load schedule, or technical specification for review by the Al-Meftaha team.
